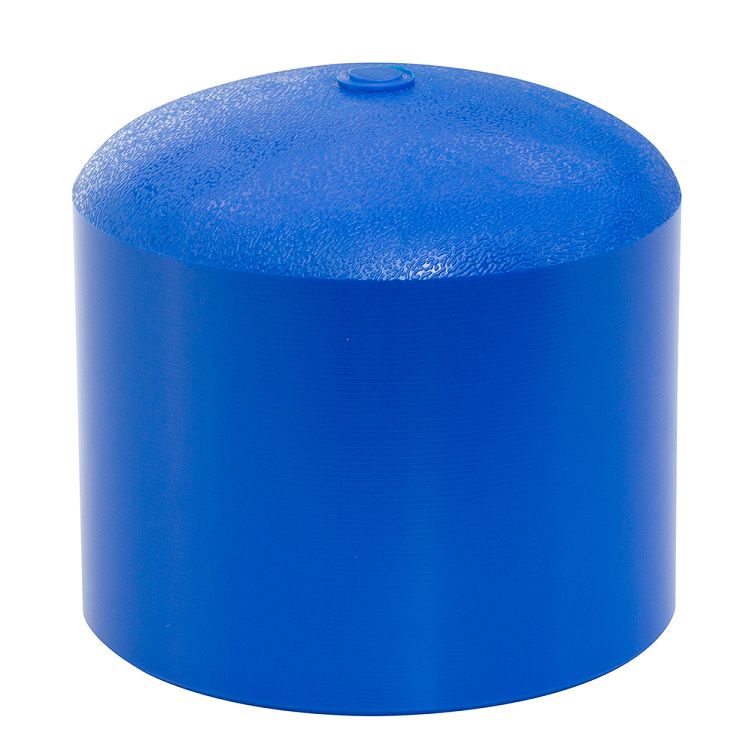

PERT-II Butt Fusion End Cap
Injection moulded, LG Chem Material SP988 and TOTAL XRT 710 material, on request available also blue and gray; SDR availability 11/17, sizes range from dn20mm to dn400mm.
Description
Main features:
Injection moulded, LG Chem Material SP988 and TOTAL XRT 710 material, on request available also blue and gray; SDR availability 11/17, sizes range from dn20mm to dn400mm.
Suitable for:
Under ISO22391-3 standard
Jointing method: Heating elements, electrofusion.
Dn /MM | N.W. KG/PC | SIZE/MM | ||
SDR11 | SDR17 | A | L | |
20 | 0.010 | / | ||
25 | 0.010 | / | 42 | 48 |
32 | 0.020 | / | 47 | 56 |
40 | 0.040 | / | 49 | 77 |
50 | 0.050 | / | 55 | 82 |
63 | 0.100 | / | 70 | 89 |
75 | 0.150 | / | 79 | 96 |
90 | 0.250 | 0.150 | 80 | 100 |
110 | 0.400 | 0.300 | 92 | 104 |
125 | 0.650 | 0.500 | 91 | 113 |
140 | 0.700 | 0.500 | 93 | 122 |
160 | 1.050 | 0.700 | 104 | 142 |
180 | 1.600 | 1.200 | 112 | 152 |
200 | 1.850 | 1.300 | 124 | 156 |
225 | 2.400 | 1.800 | 112 | 158 |
250 | 3.450 | 2.350 | 131 | 174 |
280 | 4.550 | 3.150 | 142 | 206 |
315 | 6.400 | 4.400 | 155 | 207 |
355 | 8.750 | 6.050 | 165 | 223 |
400 | 11.450 | 8.000 | 138 | 240 |
